COMBINED GRAIN AND PULSE SEED DRILL HBM

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	13 Cm
HBM 12 HBM-B 12	12	243	156	165	145	326	285	200	230	196	7.50 x 16	702	30-35
HBM 14 HBM-B 14	14	269	182				330	232	268	227		819	35-40
HBM 16 HBM-B 16	16	295	208				370	260	300	255		888	40-45
HBM 18 HBM-B 18	18	321	234				418	293	338	287		954	45-50
HBM 20 HBM-B 20	20	347	260				460	325	373	319		1015	50-55
HBM 22 HBM-B 22	22	373	286				500	352	405	345		1073	55-60
HBM 24 HBM-B 24	24	399	312				548	385	444	377		1140	60-65
HBM 26 HBM-B 26	26	425	338				590	417	478	408		1207	65-70
HBM 28 HBM-B 28	28	451	364				635	445	515	436		1272	70-75
HBM 30 HBM-B 30	30	477	390				667	478	550	468		1328	75-80
HBM 32 HBM-B 32	32	503	416				720	506	583	495		1393	80-85
HBM 34 HBM-B 34	34	529	442				760	534	615	523		1458	85-90
HBM 36 HBM-B 36	36	555	468				800	560	648	549		1550	90-95
HBM 38 HBM-B 38	38	581	494				840	590	680	578		1635	95-100
HBM 40 HBM-B 40	40	607	520				882	622	715	610		1764	100-105

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	14 Cm
HBM 12 HBM-B 12	12	255	168	165	145	326	305	215	247	242	7.50 x 16	756	30-35
HBM 14 HBM-B 14	14	283	196				355	250	288	245		882	35-40
HBM 16 HBM-B 16	16	311	224				400	280	324	274		956	40-45
HBM 18 HBM-B 18	18	339	252				450	315	365	309		1028	45-50
HBM 20 HBM-B 20	20	367	280				495	350	401	343		1094	50-55
HBM 22 HBM-B 22	22	395	308				540	380	437	372		1156	55-60
HBM 24 HBM-B 24	24	423	336				590	415	478	407		1228	60-65
HBM 26 HBM-B 26	26	451	364				635	450	514	441		1300	65-70
HBM 28 HBM-B 28	28	478	392				685	480	555	470		1370	70-75
HBM 30 HBM-B 30	30	506	420				730	515	591	505		1430	75-80
HBM 32 HBM-B 32	32	534	448				775	545	628	534		1500	80-85
HBM 34 HBM-B 34	34	562	476				820	575	665	565		1570	85-90
HBM 36 HBM-B 36	36	590	504				860	605	700	593		1670	90-95
HBM 38 HBM-B 38	38	618	532				905	635	735	623		1760	95-100
HBM 40 HBM-B 40	40	646	560				950	670	770	657		1900	100-105

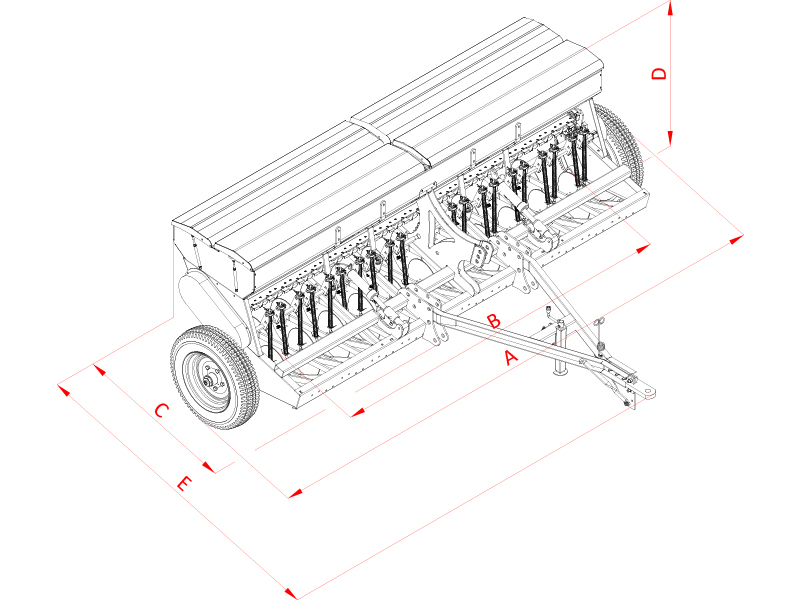

COMBINED GRAIN AND PULSE SEED DRILL HBM-B

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	13 Cm
HBM 12 HBM-B 12	12	243	156	165	145	326	285	200	230	196	7.50 x 16	702	30-35
HBM 14 HBM-B 14	14	269	182				330	232	268	227		819	35-40
HBM 16 HBM-B 16	16	295	208				370	260	300	255		888	40-45
HBM 18 HBM-B 18	18	321	234				418	293	338	287		954	45-50
HBM 20 HBM-B 20	20	347	260				460	325	373	319		1015	50-55
HBM 22 HBM-B 22	22	373	286				500	352	405	345		1073	55-60
HBM 24 HBM-B 24	24	399	312				548	385	444	377		1140	60-65
HBM 26 HBM-B 26	26	425	338				590	417	478	408		1207	65-70
HBM 28 HBM-B 28	28	451	364				635	445	515	436		1272	70-75
HBM 30 HBM-B 30	30	477	390				667	478	550	468		1328	75-80
HBM 32 HBM-B 32	32	503	416				720	506	583	495		1393	80-85
HBM 34 HBM-B 34	34	529	442				760	534	615	523		1458	85-90
HBM 36 HBM-B 36	36	555	468				800	560	648	549		1550	90-95
HBM 38 HBM-B 38	38	581	494				840	590	680	578		1635	95-100
HBM 40 HBM-B 40	40	607	520				882	622	715	610		1764	100-105

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	14 Cm
HBM 12 HBM-B 12	12	255	168	165	145	326	305	215	247	242	7.50 x 16	756	30-35
HBM 14 HBM-B 14	14	283	196				355	250	288	245		882	35-40
HBM 16 HBM-B 16	16	311	224				400	280	324	274		956	40-45
HBM 18 HBM-B 18	18	339	252				450	315	365	309		1028	45-50
HBM 20 HBM-B 20	20	367	280				495	350	401	343		1094	50-55
HBM 22 HBM-B 22	22	395	308				540	380	437	372		1156	55-60
HBM 24 HBM-B 24	24	423	336				590	415	478	407		1228	60-65
HBM 26 HBM-B 26	26	451	364				635	450	514	441		1300	65-70
HBM 28 HBM-B 28	28	478	392				685	480	555	470		1370	70-75
HBM 30 HBM-B 30	30	506	420				730	515	591	505		1430	75-80
HBM 32 HBM-B 32	32	534	448				775	545	628	534		1500	80-85
HBM 34 HBM-B 34	34	562	476				820	575	665	565		1570	85-90
HBM 36 HBM-B 36	36	590	504				860	605	700	593		1670	90-95
HBM 38 HBM-B 38	38	618	532				905	635	735	623		1760	95-100
HBM 40 HBM-B 40	40	646	560				950	670	770	657		1900	100-105

COMBINED GRAIN AND PULSE SEED DRILL HBM-T

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	13 Cm
HBM 12 HBM-B 12	12	243	156	165	145	326	285	200	230	196	7.50 x 16	702	30-35
HBM 14 HBM-B 14	14	269	182				330	232	268	227		819	35-40
HBM 16 HBM-B 16	16	295	208				370	260	300	255		888	40-45
HBM 18 HBM-B 18	18	321	234				418	293	338	287		954	45-50
HBM 20 HBM-B 20	20	347	260				460	325	373	319		1015	50-55
HBM 22 HBM-B 22	22	373	286				500	352	405	345		1073	55-60
HBM 24 HBM-B 24	24	399	312				548	385	444	377		1140	60-65
HBM 26 HBM-B 26	26	425	338				590	417	478	408		1207	65-70
HBM 28 HBM-B 28	28	451	364				635	445	515	436		1272	70-75
HBM 30 HBM-B 30	30	477	390				667	478	550	468		1328	75-80
HBM 32 HBM-B 32	32	503	416				720	506	583	495		1393	80-85
HBM 34 HBM-B 34	34	529	442				760	534	615	523		1458	85-90
HBM 36 HBM-B 36	36	555	468				800	560	648	549		1550	90-95
HBM 38 HBM-B 38	38	581	494				840	590	680	578		1635	95-100
HBM 40 HBM-B 40	40	607	520				882	622	715	610		1764	100-105

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	14 Cm
HBM 12 HBM-B 12	12	255	168	165	145	326	305	215	247	242	7.50 x 16	756	30-35
HBM 14 HBM-B 14	14	283	196				355	250	288	245		882	35-40
HBM 16 HBM-B 16	16	311	224				400	280	324	274		956	40-45
HBM 18 HBM-B 18	18	339	252				450	315	365	309		1028	45-50
HBM 20 HBM-B 20	20	367	280				495	350	401	343		1094	50-55
HBM 22 HBM-B 22	22	395	308				540	380	437	372		1156	55-60
HBM 24 HBM-B 24	24	423	336				590	415	478	407		1228	60-65
HBM 26 HBM-B 26	26	451	364				635	450	514	441		1300	65-70
HBM 28 HBM-B 28	28	478	392				685	480	555	470		1370	70-75
HBM 30 HBM-B 30	30	506	420				730	515	591	505		1430	75-80
HBM 32 HBM-B 32	32	534	448				775	545	628	534		1500	80-85
HBM 34 HBM-B 34	34	562	476				820	575	665	565		1570	85-90
HBM 36 HBM-B 36	36	590	504				860	605	700	593		1670	90-95
HBM 38 HBM-B 38	38	618	532				905	635	735	623		1760	95-100
HBM 40 HBM-B 40	40	646	560				950	670	770	657		1900	100-105

COMBINED GRAIN AND PULSE SEED DRILL HBM-M

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	14 Cm
HBM 12 HBM-B 12	12	255	168	165	145	326	305	215	247	242	7.50 x 16	756	30-35
HBM 14 HBM-B 14	14	283	196				355	250	288	245		882	35-40
HBM 16 HBM-B 16	16	311	224				400	280	324	274		956	40-45
HBM 18 HBM-B 18	18	339	252				450	315	365	309		1028	45-50
HBM 20 HBM-B 20	20	367	280				495	350	401	343		1094	50-55
HBM 22 HBM-B 22	22	395	308				540	380	437	372		1156	55-60
HBM 24 HBM-B 24	24	423	336				590	415	478	407		1228	60-65
HBM 26 HBM-B 26	26	451	364				635	450	514	441		1300	65-70
HBM 28 HBM-B 28	28	478	392				685	480	555	470		1370	70-75
HBM 30 HBM-B 30	30	506	420				730	515	591	505		1430	75-80
HBM 32 HBM-B 32	32	534	448				775	545	628	534		1500	80-85
HBM 34 HBM-B 34	34	562	476				820	575	665	565		1570	85-90
HBM 36 HBM-B 36	36	590	504				860	605	700	593		1670	90-95
HBM 38 HBM-B 38	38	618	532				905	635	735	623		1760	95-100
HBM 40 HBM-B 40	40	646	560				950	670	770	657		1900	100-105

Model	Number of Tines	(A) Total Witdh (Cm)	(B) Working Witdh (Cm)	(C) Lenght (Cm)	(D) Hopper Height (Cm)	(E) Total Lenght (Cm)	Seed Case Capacity (Lt)	Fertilizer Case Capacity (Lt)	Seed Capacity (Wheat) (Kg)	Fertilizer Capacity (Kg)	Tire Dimension (Inch)	Weight (Kg)	Min. Hp (Hp)
Seeding Distance	14 Cm
HBM 12 HBM-B 12	12	255	168	165	145	326	305	215	247	242	7.50 x 16	756	30-35
HBM 14 HBM-B 14	14	283	196				355	250	288	245		882	35-40
HBM 16 HBM-B 16	16	311	224				400	280	324	274		956	40-45
HBM 18 HBM-B 18	18	339	252				450	315	365	309		1028	45-50
HBM 20 HBM-B 20	20	367	280				495	350	401	343		1094	50-55
HBM 22 HBM-B 22	22	395	308				540	380	437	372		1156	55-60
HBM 24 HBM-B 24	24	423	336				590	415	478	407		1228	60-65
HBM 26 HBM-B 26	26	451	364				635	450	514	441		1300	65-70
HBM 28 HBM-B 28	28	478	392				685	480	555	470		1370	70-75
HBM 30 HBM-B 30	30	506	420				730	515	591	505		1430	75-80
HBM 32 HBM-B 32	32	534	448				775	545	628	534		1500	80-85
HBM 34 HBM-B 34	34	562	476				820	575	665	565		1570	85-90
HBM 36 HBM-B 36	36	590	504				860	605	700	593		1670	90-95
HBM 38 HBM-B 38	38	618	532				905	635	735	623		1760	95-100
HBM 40 HBM-B 40	40	646	560				950	670	770	657		1900	100-105

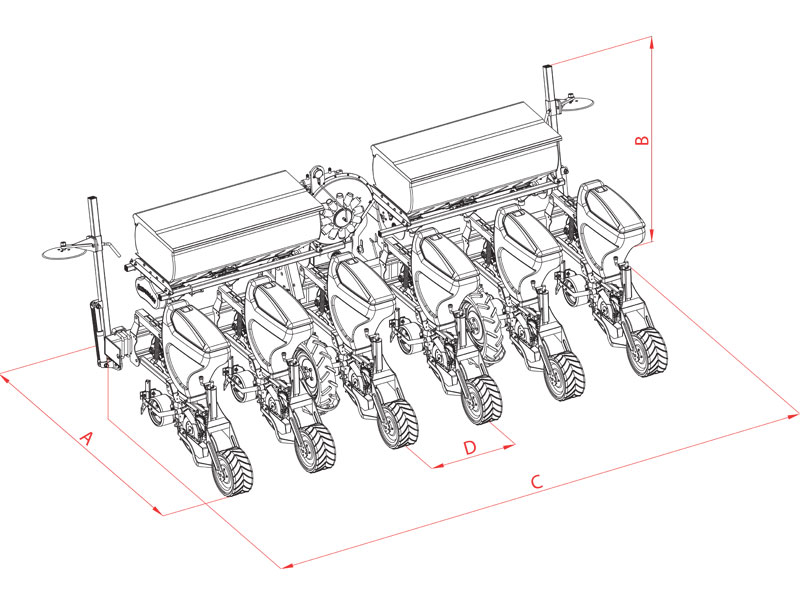

PNEUMATIC SEEDER (TINE SHARED) HVM

Specifications	Unit	HVM 4	HVM 5	HVM 6	HVM 8
Number Of Units	Ad. - Pcs	4	5	6	8
(A) Total Lenght	Cm	300		380	600
(B) Total Height	Cm	160
(C) Toplam Width	Cm	200
(D) Distance Between Rows	Cm	25x90
Seed Capacity	Lt	45 x 4	45 x 5	45 x 6	45 x 8
Fertilizer Case Vol. (Pls)	Lt	175 x 2			175 x 4
Fertilizer Capacity (Pls)	Kg	170 x 2			170 x 4
PTO (Rpm)	d/d	540
Weight Without Fertilizer Hopper	Kg	700	850	1000	1300
Weight With Fertilizer Hopper	Kg	950	1100	1250	1500
Tyre Dimension	Inch	500 x 15
Min. Hp	Hp	60	70	80	100

PNEUMATIC SEEDER (TINE SHARED) HVM-K

Specifications	Unit	HVM-KG5	HVM-K5	HVM-KG6	HVM-K6
Number Of Units	Ad. - Pcs	5		6
(A) Total Lenght	Cm	240
(B) Total Height	Cm	160
(C) Toplam Width	Cm	350		400
(D) Distance Between Rows	Cm	45 - 70
Seed Capacity		45 x 5		45 x 6
Fertilizer Case Vol. (Pls)	Lt	175 x 2	-	175 x 2	-
Fertilizer Capacity (Pls)	Kg	175 x 2	-	175 x 2	-
PTO (Rpm)	d/d	540
Weight	Kg	1200	1000	1360	1160
Tyre Dimension	Inch	6,5 / 80 - 12		23 x 10,50 - 12
Min. HP	Hp	80	70	90	80

PNEUMATIC SEEDER (DISC SHARED) HVM-D

Specifications	Unit	HVMD 4	HVMD 5	HVMD 6	HVMD 8
Number Of Units	Ad. - Pcs	4	5	6	8
(A) Total Lenght	Cm	300		380	600
(B) Total Height	Cm	160
(C) Total Width	Cm	200
(D) Distance Between Rows	Cm	25x90
Seed Capacity	Lt	40 x 4	40 x 5	40 x 6	40 x 8
Fertilizer Case Vol. (Pls)	Lt	175 x 2			175 x 4
Fertilizer Capacity (Pls)	Kg	170 x 2			170 x 4
PTO (Rpm)	d/d	540
Weight Without Fertilizer Hopper	Kg	950	1020	1250	1500
Weight With Fertilizer Hopper	Kg	1150	1220	1450	2000
Tyre Dimension	Inch	500 x 15
Min. HP	Hp	60	70	80	100

PNEUMATIC SEEDER (DISC SHARED) HVMD-K

Specifications	Unit	HVMD-KG5	HVMD-K5	HVMD-KG6	HVMD-K6
Number Of Units	Ad. - Pcs	5		6
(A) Total Lenght	Cm	240
(B) Total Height	Cm	160
(C) Total Width	Cm	350		400
(D) Distance Between Rows	Cm	45 - 70
Seed Capacity		40 x 5		40 X 6
Fertilizer Case Vol. (Pls)	Lt	175 x 2	-	175 x 2	-
Fertilizer Capacity (Pls)	Kg	170 x 2	-	170 x 2	-
PTO (Rpm)	d/d	540
Weight	Kg	1370	1170	1600	1400
Tyre Dimension	Inch	6,5 / 80 - 12		23 x 10,50 - 12
Min. HP	Hp	80	70	100	80

PNEUMATIC SEEDER (DISC SHARED) HVMD-TW

Specifications	Unit	HVMD-TW 4	HVMD-TW6	HVMD-TW8
Number Of Units	Ad. - Pcs	4 x 2	6 x 2	8 x 2
(A) Total Lenght	Cm	350	450	600
(B) Total Height	Cm	160
(C) Total Width	Cm	200		240
(D) Distance Between Seeding	Cm	25
(E) Distance Between Rows	Cm	70 - 75
Seed Capacity	Lt	40 x 8	40 x 12	40 x 16
Fertilizer Case Volume (Pls)	Lt	175 x 2		175 x 4
Fertilizer Capacity (Pls)	Kg	170 x 2		170 x 4
PTO (Rpm)	d/d	540
Weight Without Fertilizer Hopper	Kg	1050	1750	2250
Weight With Fertilizer Hopper	Kg	1500	2200	2950
Tyre Dimesion	Inch	500 x 15		6,5 / 80 - 12
Min. HP	Hp	80	100	120

PNEUMATIC SEEDER (DISC SHARED) HVMD-T

Specifications	Unit	HVMD-TG	HVMD-T	HVM-TG	HVM-T
Number Of Units	Ad. - Pcs	6
(A) Total Lenght	Cm	200
(B) Total Height	Cm	187
(C) Total Width	Cm	400
(D) Distance Between Seeding	Cm	70-75
(E) Transport Width		320
(F) Height Without Fertilizer Hopper		155
Seed Capacity	Lt	40 x 6		45 x 6
Fertilizer Case Volume (Pls)	Lt	175 x 2	-	175 x 2	-
Fertilizer Capacity (Pls)	Kg	170 x 2	-	170 x 2	-
PTO (Rpm)	d/d	540
Weight	Kg	1600	1300	1300	1000
Tyre Dimension	Inch	500 x 15
Min. HP	Hp	90	80	90	80
